T100 Analog Joystick Issues

Hello,
I am trying to control T100-R1 thrusters using the Arduino code and breadboard setup found here:

The issue I am running into is that although the code uploads properly, as well as everything working fine, I am having issues with my joysticks. Since the Adafruit Arduino kit came with VCC Joysticks, I am unable to control the thrusters, which require VSS Joysticks. Is there a possbile solution to this issue, maybe by tweaking the code and/or schematic a bit, or is the best option to purchase VSS Joysticks? Any help would be greatly appreciated.

Thanks,
Drake

Hi Drake,

Can you explain what is a VCC joystick and a VSS Joystick ?
Can you also share your code with a minimal example that can replicate your problem ?

Sure, VSS stands for Voltage Source Supply, and VCC is Voltage Common Collector, which as of now is the extent of my knowledge towards these factors. I do know that they are different in some way, since the joysticks I am currently using aren’t working. It could be the code, though. Here is the code:

    indent preformatted text by 4 spaces    /* Blue Robotics Example Code
-------------------------------

Title: Analog Joystick Control Example (Arduino)
Description: This code is an example of how to use the Blue Robotics thrusters
and ESCs to control a simple underwater vehicle. The code is designed to use
analog joysticks (http://www.parallax.com/product/27808) and three thrusters.
The thrusters are oriented with two pointing forward, one on the left and one
on the right side of the vehicle, as well as a vertical thruster.
The code is designed for the Arduino Uno board and can be compiled and
uploaded via the Arduino 1.0+ software.
-------------------------------
The MIT License (MIT)
Copyright (c) 2014 Blue Robotics Inc.
Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in
all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
THE SOFTWARE.
-------------------------------*/

#include <Servo.h>

// Joystick Settings
static const int JS_CENTER_0 = 511; // Analog reading at center, 0-1023
static const int JS_CENTER_1 = 511;
static const int JS_CENTER_2 = 511;
static const int JS_RANGE_0 = 128; // Analog range, 0-1023
static const int JS_RANGE_1 = 128; // Set to 128 for Parallax joystick
static const int JS_RANGE_2 = 128;
static const int JS_DIR_0 = 1; // +1 or -1
static const int JS_DIR_1 = 1;
static const int JS_DIR_2 = 1;

// ESC/Thruster Settings
static const int MAX_FWD_REV_THROTTLE = 400; // Value between 0-400
static const int MAX_TURN_THROTTLE = 400; // Value between 0-400
static const int MAX_VERTICAL_THROTTLE = 400; // Value between 0-400
static const int CENTER_THROTTLE = 1500;

// Arduino Pins
static const byte JS_ADC_0 = A0;
static const byte JS_ADC_1 = A1;
static const byte JS_ADC_2 = A2;
static const byte THRUSTER_LEFT = 9;
static const byte THRUSTER_RIGHT = 10;
static const byte THRUSTER_VERTICAL = 11;

// Servos
Servo thrusterLeft;
Servo thrusterRight;
Servo thrusterVertical;

void setup() {
  // Set up serial port to print inputs and outputs
  Serial.begin(38400);

  // Set up Arduino pins to send servo signals to ESCs
  thrusterLeft.attach(THRUSTER_LEFT);
  thrusterRight.attach(THRUSTER_RIGHT);
  thrusterVertical.attach(THRUSTER_VERTICAL);

  // Set output signal to 1500 microsecond pulse (stopped command)
  thrusterLeft.writeMicroseconds(CENTER_THROTTLE);
  thrusterRight.writeMicroseconds(CENTER_THROTTLE);
  thrusterVertical.writeMicroseconds(CENTER_THROTTLE);

  // Delay to allow time for ESCs to initialize
  delay(7000);
}

void loop() {
  // Read the joysticks and use the Arduino "map" function to map the raw values
  // to the desired output commands.
  int forwardCommand    = map(analogRead(JS_ADC_0), // Read raw joystick value
                              JS_CENTER_0-JS_DIR_0*JS_RANGE_0, // Joystick low value
                              JS_CENTER_0+JS_DIR_0*JS_RANGE_0, // Joystick high value
                              -MAX_FWD_REV_THROTTLE, // Command low value
                              MAX_FWD_REV_THROTTLE); // Command high value
  int turnCommand       = map(analogRead(JS_ADC_1), // Read raw joystick value
                              JS_CENTER_1-JS_DIR_1*JS_RANGE_1, // Joystick low value
                              JS_CENTER_1+JS_DIR_1*JS_RANGE_1, // Joystick high value
                              -MAX_TURN_THROTTLE, // Command low value
                              MAX_TURN_THROTTLE); // Command high value
  int verticalCommand   = map(analogRead(JS_ADC_2), // Read raw joystick value
                              JS_CENTER_2-JS_DIR_2*JS_RANGE_2, // Joystick low value
                              JS_CENTER_2+JS_DIR_2*JS_RANGE_2, // Joystick high value
                              -MAX_VERTICAL_THROTTLE, // Command low value
                              MAX_VERTICAL_THROTTLE); // Command high value

  // Combine the "stopped" command with forward, turn, and vertical and send
  // to the ESCs.
  thrusterLeft.writeMicroseconds(CENTER_THROTTLE+forwardCommand+turnCommand);
  thrusterRight.writeMicroseconds(CENTER_THROTTLE+forwardCommand-turnCommand);
  thrusterVertical.writeMicroseconds(CENTER_THROTTLE+verticalCommand);

  // Output via serial
  Serial.print("Fwd: "); Serial.print(forwardCommand);
  Serial.print("Turn: "); Serial.print(turnCommand);
  Serial.print("Vert: "); Serial.print(verticalCommand);
  Serial.println("");

  // Delay 1/10th of a second. No need to update at super fast rates.
  delay(100);
}

Hi Drake,

The power supply of your joysticks should be not a problem and relevant for this case.
But the voltage output of the joystick can be different for each case, make sure that the joystick provides an analog output that is acceptable to the Arduino.
You can check that with a multimeter or an oscilloscope.

I would recommend also to test it with a single joystick and motor to figure out the problem.

@drakecaruthers This program was designed to use Parallax joysticks. You may purchase those joysticks to use with the program, or like @patrickelectric suggested, check the actual output of your joysticks and adjust the program to work with the signal range it produces. The range is specified in the code here: br-esc-examples/AnalogJoystickControl.ino at master · bluerobotics/br-esc-examples · GitHub

Apologies for the late reply,
So I did figure out that issue with the motors, albeit it was quite a minor one, but I was able to get one working. Though, I did run into another issue: after using the aforementioned github code and schematic, only one of the three motors in the schematic ever runs at a time. I did make sure that the motors were all working, which they were, as well as the ESCs, but I’m currently unsure what the issue may be. I am getting power to both motors, and I undid the entire breadboard hookup and did it again to make sure that wasn’t the issue.

It sounds like a bug or power issue. In order for us to advise, we need your entire code that you are using and pictures of how everything is connected.

Alright, I got the pictures together:

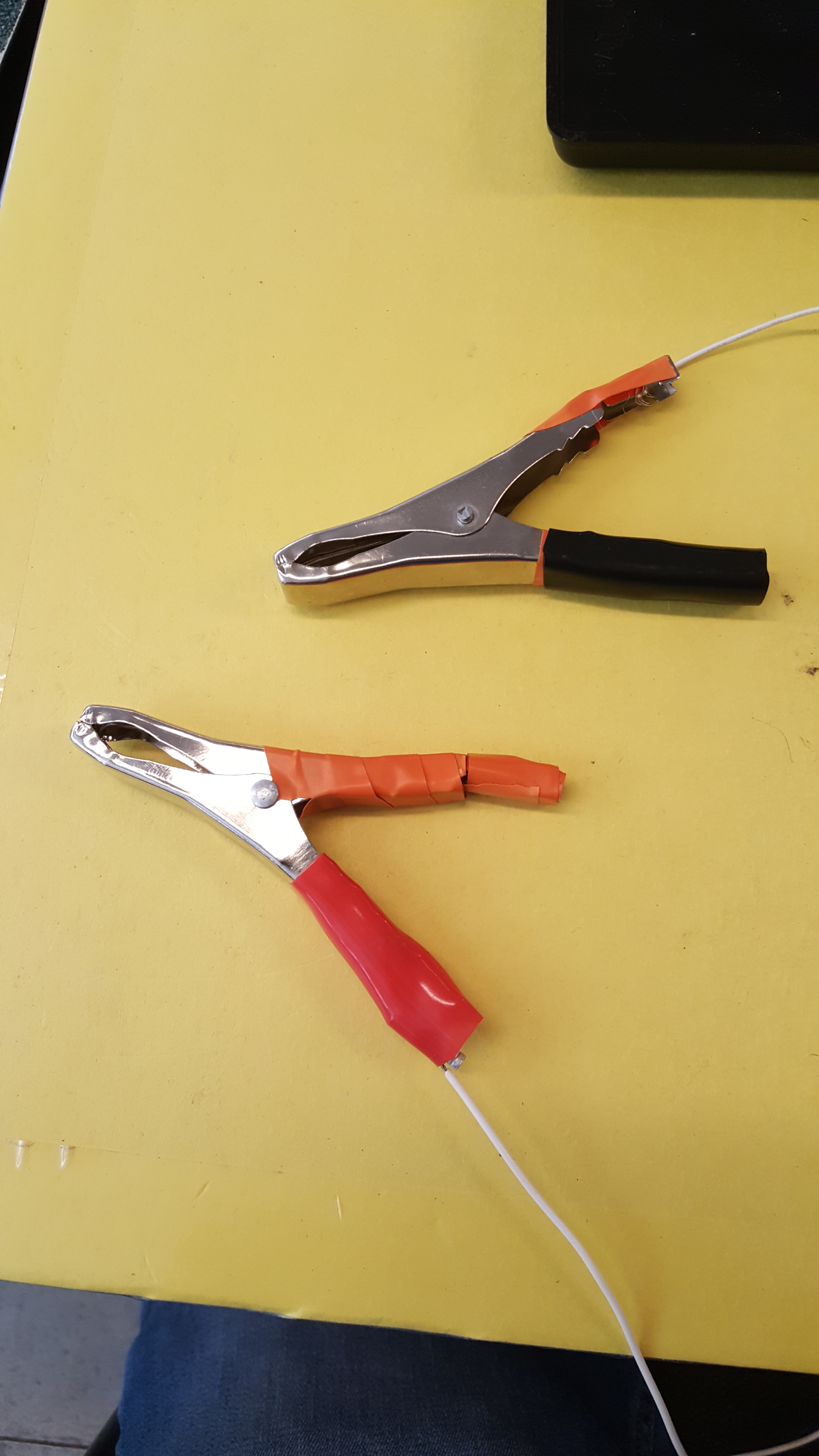

The two jumper cables connected to the 12V battery

The ground terminal with jumpers, connected to the ground cords on the ESCs

the two positives, connected to the ESCs, are also attached to an identical terminal compared to the ground terminal, with the jumpers and positives connected

I also made a rough schematic of what should’ve been the final setup:

(Also forgive the string of posts, apparently new users aren’t allowed multiple images in a post)
